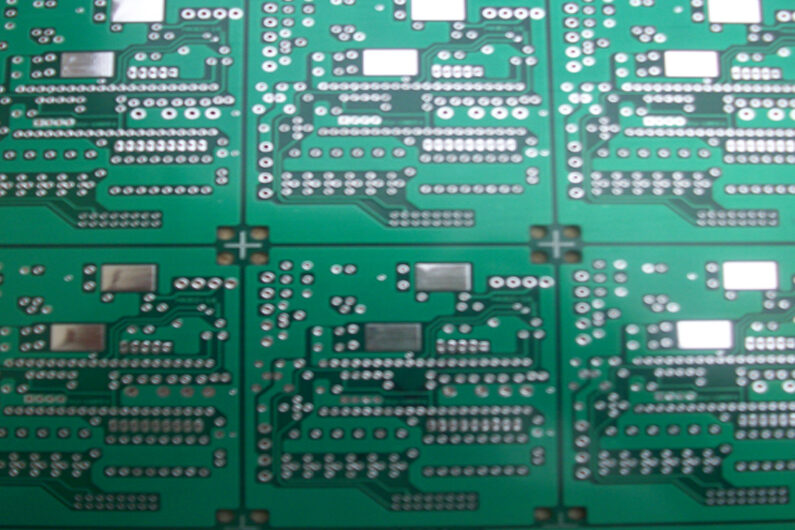

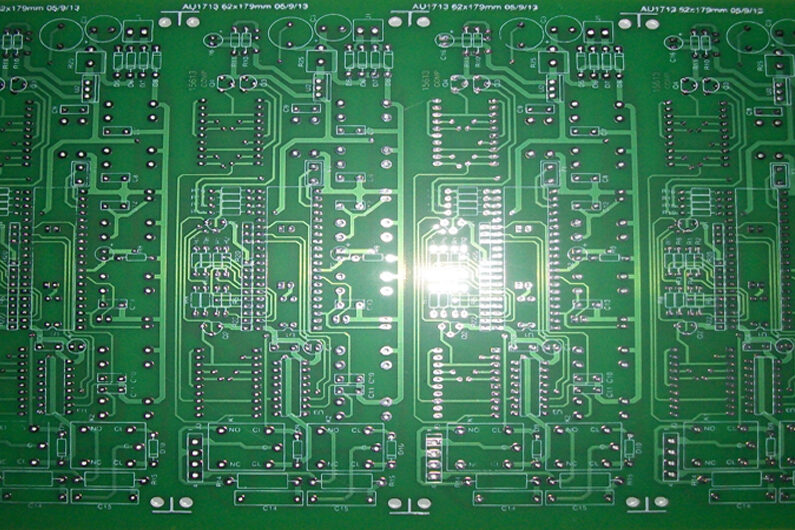

PCB Designing and Art Work
PCB Design and Art work is made on one of the most versatile software circuitmaker.
PCB Design can be made from drawings, semantic diagram, pcb samples, etc.
Technical Specification
PCB CAPABILITIES
| Specification | Standard |
|---|---|
| Maximum Board Size | 600mm X 520mm |
| Maximum Number Of Layer | 2 Layer (DSPTH) |
| Minimum Conductor Width | 4 mils (0.1mm) |
| Minimum Conductor Spacing | 4 mils (0.1mm) |
| Minimum Plated Hole Size | 8 mils (0.2mm) |
| Board Thickness Tloerence | 10% |
| Drill Tloerences | |
| 0.5 – 2.5mm | (+/-) 0.05mm |
| > 2.5mm | (+/-) 0.10mm |
| Size Tloerences | |
| < 150mm | (+/-) 0.10mm |
| > 150mm | (+/-) 0.20mm |
| Product Finish | |
| Surface Finish | HAL, TIN, Nickel, ENIG, Lead Free HAL |
| Copper Finish | 35μ, 70μ, 105μ |
| Solder Mask Finish | PISM |
| Solder Mask Colour | Green / White / Blue / Red / Black |
| Nickel Thickness | 120μ – 150μ |
| Gold Thickness | 5μ – 8μ |
| Legent Colour | White / Black / Yellow |
| Product Raw Material | |
| Singal Side | FR4, CEM1, MC PCB |
| Double Side | FR4, CEM-3 |
| Fixible | 0.2MM FR4, 0.1 polimide |
| Electrical Testing | |
| BBT, FPT | |
| Special Requirements | |
| Carbon Printing, Selective Gold, Selective Nickel |
